Products

Well thought-out, right
down to the smallest detail

Our locking units and locking cartridges are more than just integrable, powerful, durable and reliable; they also prove their excellent efficiency and cost-effectiveness on a daily basis.

montageanleitung feststellpatrone in feststelleinheit an pneumatischem zylinder
Play Video
Components

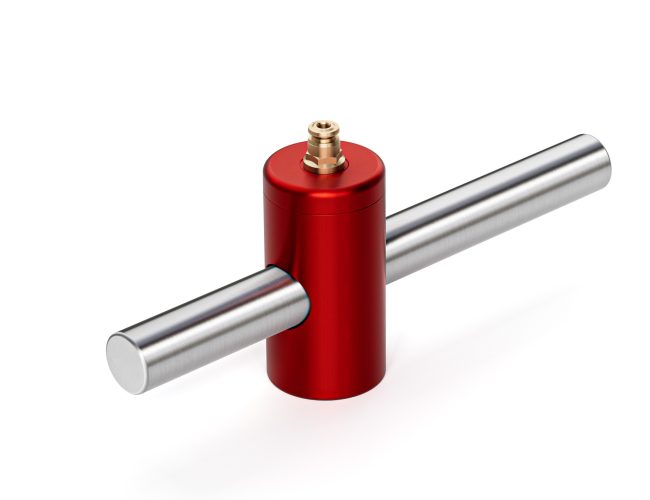

Robust locking cartridges

Our tried-and-tested locking cartridges are independent components that reliably hold round material in any position using spring force.

rote feststellpatronen unterschiedliche grössen

Function

Holding is guaranteed over an extended period of time – even in the event of alternating loads, fluctuations in operating pressure and leakage. The clamping force is negated by applying pressure to the locking cartridge. Our locking cartridges can be installed in any position. Holding in a static condition only.



Characteristics

LD series (release under pressure)

HD series (hold under pressure)

Description

Materials
Body: anodised aluminium
Clamping jaws: brass
Piston: POM/Delrin
Spring: Oteva, stainless steel (SA design)
Seals: NBR

Temperature range
-20°C to +80°C

Operating pressure
4 to 7 bar



Advantages

  • Short response time and high switching frequency possible
  • Long service life
  • Great holding force
  • Quick and easy installation
  • Low air consumption
  • High clock frequency achievable

Safety information

  • Locking cartridges are not suitable for positioning.
  • Not certified for use in safety-related controllers.
  • The piston rod must not be twisted or subjected to external shocks during clamping either. This may result in loss of the clamping effect!

Function

Holding is guaranteed over an extended period of time – even in the event of alternating loads, fluctuations in operating pressure and leakage. The clamping force is negated by applying pressure to the locking cartridge. Our locking cartridges can be installed in any position. Holding in a static condition only.



Characteristics

LD series (release under pressure)

HD series (hold under pressure)



Description

Materials
Body: anodised aluminium
Clamping jaws: brass
Piston: POM/Delrin
Spring: Oteva, stainless steel (SA design)
Seals: NBR

Temperature range
-20°C to +80°C

Operating pressure
4 to 7 bar



Advantages

  • Short response time and high switching frequency possible
  • Long service life
  • Great holding force
  • Quick and easy installation
  • Low air consumption
  • High clock frequency achievable

Safety information

  • Locking cartridges are not suitable for positioning.
  • Not certified for use in safety-related controllers.
  • The piston rod must not be twisted or subjected to external shocks during clamping either. This may result in loss of the clamping effect!

Clamps

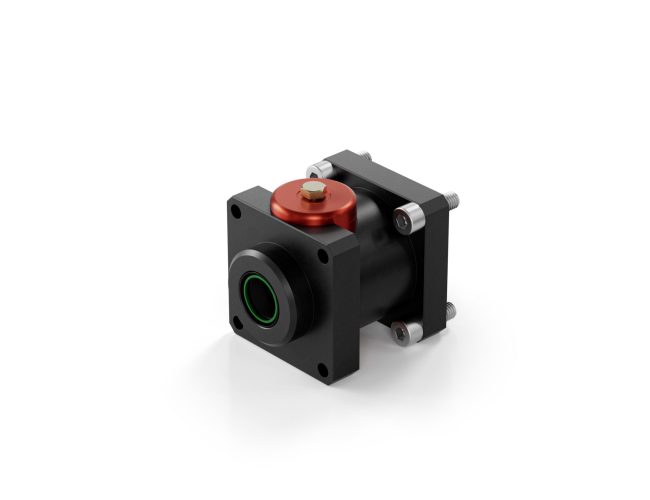

Position-precise locking units

Our locking units are mainly used as functional clamps for position-precise locking of machine and plant parts, as well as for securing against unintentional movement. They are mechanical and maintenance-free.

Function

The locking unit is used to hold round material, like piston rods (chrome-plated steel, stainless steel), guides, etc., in any position. Special adapters are available for cylinders. The clamping unit automatically clamps the round material during venting (power failure) and releases it again during pressurisation (powerless break).



Description

Scope of delivery

The locking unit consists of a locking cartridge including cylinder holder with four fixing screws

Materials
Body: anodised aluminium
Clamping jaws: brass
Piston: POM/Delrin
Spring: Oteva, stainless steel (SA design)
Seals: NBR

Temperature range
-20°C to +80°C

Operating pressure
4 to 7 bar



Advantages

  • Short response time and high switching frequency possible
  • Long service life
  • Reproducible positioning thanks to precise guidance of the jaws in the housing
  • Particularly low wear on the jaws and the shaft thanks to the use of special brass

  • Automatic, safe holding, even in the event of a power failure (powerless break)

Safety information

  • The locking unit must not be used as a safety device. It is not approved as a safety element and is not to be used as a dynamic brake either.
  • When used on pneumatic cylinders, the locking unit must only be loosened when the forces on the piston are balanced. Jerky piston rod movement may cause wear on the cartridge and risk of accidents.
  • Shutting off the compressed air supply on both sides (e.g. using a 5/3-way valve, middle position blocked) does not provide any safety! A 5/3-way valve, middle position vented, can be used in many cases. Contact us to discuss your particular case.

Function

The locking unit is used to hold round material, like piston rods (chrome-plated steel, stainless steel), guides, etc., in any position. Special adapters are available for cylinders. The clamping unit automatically clamps the round material during venting (power failure) and releases it again during pressurisation (powerless break).



Description

Scope of delivery

The locking unit consists of a locking cartridge including cylinder holder with four fixing screws

Materials
Body: anodised aluminium
Clamping jaws: brass
Piston: POM/Delrin
Spring: Oteva, stainless steel (SA design)
Seals: NBR

Temperature range
-20°C to +80°C

Operating pressure
4 to 7 bar



Advantages

  • Short response time and high switching frequency possible
  • Long service life
  • Reproducible positioning thanks to precise guidance of the jaws in the housing
  • Particularly low wear on the jaws and the shaft thanks to the use of special brass

  • Automatic, safe holding, even in the event of a power failure (powerless break)


Safety information

  • The locking unit must not be used as a safety device. It is not approved as a safety element and is not to be used as a dynamic brake either.
  • When used on pneumatic cylinders, the locking unit must only be loosened when the forces on the piston are balanced. Jerky piston rod movement may cause wear on the cartridge and risk of accidents.
  • Shutting off the compressed air supply on both sides (e.g. using a 5/3-way valve, middle position blocked) does not provide any safety! A 5/3-way valve, middle position vented, can be used in many cases. Contact us to discuss your particular case.

feststelleinheit mit roter feststellpatrone
Components with spring

A. 6000
series locking cartridge

Design with spring

LD series (release under pressure)

HD series (hold under pressure) on request

Type MA. (with cylinder holder)

feststellpatronen sortiment
Type A.
Shaft diameter
Holding force
Type MA.
A. 6004
4 mm
80
A. 6006
6 mm
180
MA. 7016
A. 6008
8 mm
350
MA. 7020
A. 6010
10 mm
350
MA. 7025
A. 6012
12 mm
600
MA. 7032
A. 6016
16 mm
1000
MA. 7040
A. 6020
20 mm
1400
MA. 7050
A. 6020/S
20 mm
2000
MA. 7063
A. 6025
25 mm
2500
MA. 7063
A. 6025/S
25 mm
5000
MA. 7080
A. 6025/S
25 mm
5000
MA. 7100
A. 6032
32 mm
7500
MA. 7125
A. 6040
40 mm
12000
MA. 7160
Components with clamping ring

V. 5000
series locking cartridge

Design with clamping ring

LD series (release under pressure)

Type MV. (with cylinder holder)

feststellpatronen sortiment
Type V.
Shaft diameter
Holding force
Type MV.
V. 5006
6 mm
180
MV. 5016
V. 5008
8 mm
280
MV. 5020
V. 5010
10 mm
400
MV. 5025
V. 5012
12 mm
650
MV. 5032
V. 5016
16 mm
1100
MV. 5040
V. 5020
20 mm
1600
MV. 5050
V. 5020/S
20 mm
2500
MV. 5063
V. 5025
25 mm
4000
MV. 5080
V. 5025/S
25 mm
6300
MV. 5100
V. 5032
32 mm
8800
MV. 5125
feststellpatronen vor der auslieferung
Locking cartridges

Areas of
­application

The locking cartridges are used in conjunction with ISO pneumatic ­cylinders. These are used in many different ­fields, such as:

  • Fluid power
  • Plant and mechanical engineering
  • Conveyor, handling and drive technology
  • Wood and glass construction industry
Locking cartridges

Areas of
­application

The locking cartridges are used in conjunction with ISO pneumatic ­cylinders. These are used in many different fields, such as:

  • Fluid power
  • Plant and mechanical engineering
  • Conveyor, handling and drive technology
  • Wood and glass construction industry
